Business Architecture Value Streams: Definition, Examples, and Mapping
Concrete value stream examples, how value streams differ from processes, and how to map and use them for capability planning and transformation
By Capstera Business Architecture Staff · Updated
12 min read
A value stream is the end-to-end sequence of activities an organization performs to deliver value to a customer or stakeholder. Common value stream examples include order-to-cash, hire-to-retire, procure-to-pay, and idea-to-market. This guide catalogs the standard examples, shows how value streams differ from processes, and explains how business architects map and use them.
Value streams sit at the center of business architecture practice because they answer a question capability maps cannot: in what sequence, and for whom, does the organization create value? Teams that skip them tend to optimize departments instead of outcomes. Value streams give leaders a shared, customer-anchored picture of value flow across complex ecosystems — the foundation for capability cross-mapping, transformation planning, and operational improvement.
Key Takeaways
- A value stream is the end-to-end sequence of activities that delivers value to a customer or stakeholder, named from trigger to outcome (for example, order-to-cash).
- Common examples include order-to-cash, procure-to-pay, hire-to-retire, and idea-to-market — most organizations can describe their business in a compact set of streams.
- Value streams describe what value is delivered and to whom; processes describe how the work gets done. Conflating the two is the most common modeling mistake.
- Aligning business capabilities with value stream stages turns two static maps into a prioritization tool for investment and transformation.
- Value stream mapping reveals inefficiencies and hidden dependencies across organizational boundaries.
What Are Common Value Stream Examples?
Most enterprise value streams follow a trigger-to-outcome naming pattern: where value delivery starts, and what the stakeholder holds at the end. These generic examples recur across industries and make a practical starting catalog.
Value streams are usually split into two groups. Operational value streams deliver products or services directly to external customers. Supporting value streams deliver value to internal stakeholders so the operational streams can run. Both kinds earn a place on the map — an enterprise that only models customer-facing streams will miss the internal flows that most often cause the customer-facing ones to stall. Organizations tailor the names below to their own vocabulary, but the underlying shapes are remarkably consistent.
- Order-to-Cash — from a customer placing an order to payment received (operational)
- Prospect-to-Customer — from first contact with a potential buyer to a signed, onboarded customer (operational)
- Quote-to-Order — from a request for pricing to a confirmed, accepted order (operational)
- Request-to-Fulfill — from a service request to the requester receiving the service (operational)
- Issue-to-Resolution — from a reported problem or complaint to a confirmed fix (operational)
- Idea-to-Market — from product or service concept to commercial launch (operational)
- Claim-to-Settlement — from a filed insurance claim to payout or denial (operational, insurance)
- Application-to-Approval — from a submitted application to a decision (operational: lending, permits, admissions)
- Procure-to-Pay — from identifying a need for goods or services to paying the supplier (supporting)

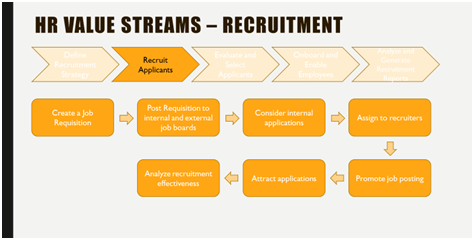

- Hire-to-Retire — from recruiting a candidate to offboarding an employee (supporting)
- Plan-to-Produce — from production planning to finished goods ready to ship (supporting, manufacturing)
- Record-to-Report — from capturing financial transactions to published financial statements (supporting)
What Is a Business Architecture Value Stream?
To use the examples well, it helps to be precise about what a value stream represents within business architecture.
A value stream is a high-level visualization of the sequence of activities an organization undertakes to deliver a product or service to its customers or stakeholders. Unlike traditional process maps, value streams focus on value creation from the recipient's perspective rather than internal departmental boundaries. Each stream begins with a triggering stakeholder and a trigger event, moves through a small number of stages, and ends with value delivered. By capturing this flow, organizations can identify bottlenecks, redundancies, and areas ripe for innovation. Within business architecture, value streams connect strategic goals to business capabilities, providing a bridge between why the enterprise exists and how it operates.
Value Streams vs. Processes: What Is the Difference?
The two are routinely conflated, and the confusion is expensive: process detail dragged into architecture reviews, or strategy debates conducted at the level of task flows.
The practical distinction is altitude and perspective. A value stream states what value is delivered, to whom, and through which stages — seen from outside in. A process states how work is performed — tasks, roles, decision points, exceptions — seen from inside out. One value stream stage is typically realized by several processes. The two also age differently: value streams stay stable for as long as the value proposition holds, while the processes beneath them churn with every reorganization, system replacement, and improvement initiative. When a 'value stream map' needs updating every quarter, that is usually the sign that processes have crept into it.
| Value Streams | Business Processes | |
|---|---|---|
| Question answered | What value is delivered, to whom, and in what stages | How work is performed, by whom, and in what sequence |
| Perspective | Outside-in: the customer or stakeholder receiving value | Inside-out: the teams and systems doing the work |
| Level of detail | A handful of high-level stages per stream | Task- and activity-level detail, decision points, exceptions |
| Stability | Relatively stable; changes when the value proposition changes | Changes frequently with reorganizations, systems, and improvement work |
| Boundaries | Always end-to-end, cutting across functions and systems | Often scoped within a single function or system |
| Primary use | Strategy alignment, capability cross-mapping, investment prioritization | Operational execution, automation, compliance, training |
The Role of Value Streams in Capability Mapping
Value streams and capability maps are complementary tools that together enhance enterprise insight.
Capability maps define what an organization can do, representing the 'abilities' or 'building blocks' of the business. Value streams, on the other hand, illustrate how these capabilities are orchestrated to deliver value to customers. By aligning capabilities to specific value streams — cross-mapping, in BIZBOK terms — business architects can prioritize capability development based on strategic impact: a weak capability enabling a critical stage of order-to-cash is a very different investment case than the same weakness in a peripheral stream. This alignment also facilitates investment decisions, organizational design, and technology enablement. The synergy between value streams and capabilities empowers organizations to transform holistically rather than in isolated silos.
| Value Streams | Capability Maps | |
|---|---|---|
| Focus | End-to-end flow of value from customer perspective | Organizational abilities and building blocks |
| Purpose | Visualize and optimize value delivery | Define and assess business capabilities |
| Scope | Cross-functional and cross-system activities | Functional and technical abilities |
| Outcome | Improved customer satisfaction and operational efficiency | Informed capability development and investment |
How Do You Map a Value Stream?
Effective value stream mapping requires rigorous analysis and stakeholder collaboration — and a deliberate refusal to let process detail in.
The mapping process starts by identifying the primary value streams that represent the core ways the organization delivers value, categorized as operational (directly delivering products or services) or supporting (enabling the operational streams). Each stream is then broken into distinct stages, with each stage defined by the state of the value being delivered rather than by the department doing the work. Performance signals such as cycle time, wait time, and quality indicators help locate bottlenecks. Engaging cross-functional teams ensures that maps reflect reality and uncover hidden dependencies — the maps drawn by a single team are reliably the ones that miss where the stream actually stalls. Advanced techniques like value stream analytics and simulation can further enhance insights once the basic map is trusted.
Value Stream Mapping, Step by Step
- Scope — Pick one stream and name it trigger-to-outcome: Choose a single value stream, then define its triggering stakeholder, the trigger event, and the value delivered at the end.

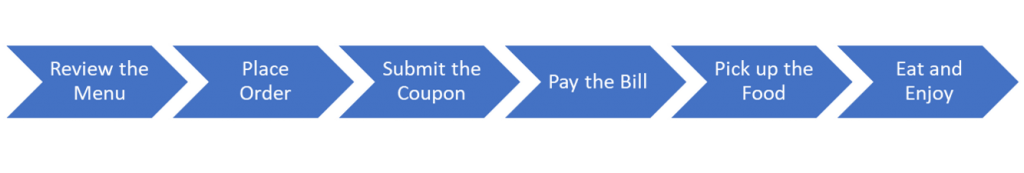

- Stages — Break the stream into value stages: Define the handful of stages the value item moves through, each described by the state of the value received — not by the department that touches it.
- Participants — Identify participating stakeholders: For each stage, record who participates and what they contribute. This is where hidden cross-functional dependencies surface.
- Cross-map — Attach enabling capabilities: Map the business capabilities each stage depends on, creating the bridge between value delivery and capability investment planning.
- Assess — Collect performance signals: Gather indicators such as cycle time, wait time, and quality at each stage to identify bottlenecks and redundancies.
- Validate — Review with stakeholders and iterate: Walk the map with the people who live inside the stream, refine until it reflects reality, then set a review cadence so it stays current.
Leveraging Value Streams for Enterprise Transformation
Value streams serve as a foundation for driving strategic transformation and continuous improvement.
By focusing on value delivery, organizations can prioritize initiatives that have the greatest impact on customer experience and business outcomes. Value streams help break down organizational silos, encouraging cross-functional collaboration and end-to-end accountability. They also enable more agile responses to market changes, as adjustments can be made at specific stages to improve flow and reduce waste. Integrating value streams with digital tools, such as enterprise architecture repositories and business process management systems, enhances transparency and accelerates transformation efforts. Ultimately, value streams empower leaders to connect strategy with execution in a measurable, repeatable way.
Best Practices and Common Pitfalls
Maximizing value stream effectiveness requires adherence to best practices and awareness of common challenges.
Successful value stream initiatives start with clear executive sponsorship and alignment to business strategy. Maintaining simplicity in mapping while capturing essential details prevents analysis paralysis. It is critical to ensure ongoing maintenance of value streams to reflect evolving business models. Common pitfalls include overly complex maps, lack of stakeholder engagement, and focusing solely on internal processes without the customer lens. A subtler failure mode: value streams authored by a single function quietly become that function's process map with a new label. Continuous education and iterative refinement help sustain value stream relevance and organizational buy-in.
Value Stream Quality Checklist
- Named trigger-to-outcome from the stakeholder's perspective (order-to-cash, not 'sales operations')
- Triggering stakeholder, trigger event, and delivered value explicitly stated
- Stages defined by value progression, not by departmental hand-offs
- Enabling capabilities cross-mapped to each stage
- Validated in a cross-functional session, not authored by one team
- Executive sponsor identified and a review cadence agreed
Related Guides and Tools
Value streams do their real work when connected to the rest of the business architecture. These guides cover the adjacent pieces.
Keep Building Your Business Architecture
- Business Capability Heatmaps — Overlay maturity and importance on the capabilities your value streams depend on.
- Business Functions vs. Business Capabilities — Untangle two more commonly conflated concepts before you cross-map.
- List of Common Business Capabilities — A starting catalog of capabilities to cross-map to your value stream stages.
- What Is BIZBOK? — The Business Architecture Guild's body of knowledge that formalizes value streams.
Frequently Asked Questions
Direct answers to the questions practitioners ask most about business architecture value streams.
What are some common examples of value streams?
Frequently used examples include order-to-cash, prospect-to-customer, procure-to-pay, hire-to-retire, idea-to-market, request-to-fulfill, and issue-to-resolution. Industry-specific variants include claim-to-settlement in insurance and application-to-approval in lending. Most follow a trigger-to-outcome naming pattern that states where value delivery starts and what the stakeholder receives at the end.
What is the difference between a value stream and a process?
A value stream describes what value is delivered and to whom, in a small number of high-level stages seen from the stakeholder's perspective. A process describes how the work is performed — tasks, roles, decision points, exceptions. One value stream stage is typically realized by several processes, and value streams stay stable while the processes beneath them change.
How do value streams relate to business capabilities?
Capabilities define what an organization can do; value streams show how those abilities are orchestrated to deliver value. Business architects cross-map capabilities to value stream stages, which turns the two views into a prioritization tool: a weak capability that enables a critical stage is an obvious investment candidate.
Are business architecture value streams the same as Lean value stream mapping?
No. Lean value stream mapping comes from manufacturing and analyzes the flow of materials and information to remove waste from a specific process. Business architecture value streams, as described in the BIZBOK Guide, sit at a higher level: they describe how an enterprise delivers value to a stakeholder and are cross-mapped to capabilities rather than to work instructions.
How many value streams should an organization define?
There is no fixed number, and more is not better. The test is whether each stream delivers a distinct outcome to a distinct stakeholder. Most organizations can describe their business in a compact set of streams; a map that runs much longer usually means processes or functions have crept in.
Who should own a value stream?
Because value streams cut across functions, ownership should sit with someone accountable for the end-to-end outcome rather than with any single department. Many organizations name a value stream owner or executive sponsor per stream; without one, each function optimizes its own segment and the end-to-end view decays.
Pro Tips
- Integrate value stream mapping with capability assessments for holistic insight.
- Leverage technology platforms for real-time value stream monitoring and analytics.
- Use value streams as the backbone for aligning portfolio management and investment decisions.
